People love fast loading sites. This is especially true for customers visiting e-commerce websites. An average customer will be happy, more satisfied and will likely to visit your site again thus increasing your conversion rate. On the flipside, users have no patience for slow loading websites. According to Google, 53% of consumers are likely to abandon sites that take more than 3 seconds to load. This shows how crucial site performance is. In fact, so important is site performance that Google has made site speed a factor in ranking websites to give consumers the best user experience. As a web administrator, you would, therefore, need to do everything possible to boost your site’s performance for higher rankings and enjoy a higher conversation rate.
What is Varnish?
Written in C language under FreeBSD license, Varnish is a free and open source HTTP accelerator that was built for speeding up dynamic and content heavy sites that get massive traffic. Essentially, Varnish acts as a reverse proxy for your web server. Varnish accelerator sits at the front of your web server and serves requests by a factor of about 300 to 100 times, thereby easing the workload of your CPU. It receives HTTP requests and answering them from the cache. If a request cannot be answered, it is forwarded to the backend whereupon a response is fetched, stored in the cache and later delivered to the client. When a response is cached, it is delivered in microseconds, many times faster than your typical web server.
What is caching and what are its benefits?
Varnish takes caching to a whole new level. When a user visits a web server for the first time, the web server will serve the HTTP request, but Varnish will save a copy of the client request. The next time someone visits the same page, Varnish will automatically take note that the requests have been made earlier and will expeditiously respond by serving a cached version of the request. This action accelerates the speed by up to an extraordinary 300 to 1000 times! What this also implies is that should the site experience immense traffic, it will be better equipped to handle the request without impacting negatively on the site speed and server resources such as CPU. The amount of CPU required to return a cached result is much lower compared to serving a new request altogether.
Varnish can also act as a load balancer, thereby speeding up websites by storing the cache in RAM. This fundamental ability to serve requests by caching requests is what enhances your site’s performance and speed.
In addition to its performance capabilities, Varnish comes with a flexible configuration language called VCL. With VCL you can seamlessly configure policies which determine how incoming requests will be handled by the HTTP accelerator.
Varnish supports modern versions of Linux, FreeBSD, OS X as well as Solaris and derivatives of Solaris.
In this guide, we will dive in and see how to install and set up Varnish 6.2 as a proxy on your cPanel server.
Let’s jump right in!
Installing Varnish HTTP Cache
Before proceeding to install Varnish, ensure to do a pre-flight check of the prerequisites needed.
- Server running cPanel
- Root SSH access to the server.
Step 1. Installing EPEL release
The first step in installing Varnish 5.2 is to ensure that the EPEL repository is installed on your system. EPEL is an acronym for Extra Packages for Enterprise Linux. This is done by executing the command below
# yum install -y epel-release
Additionally, you can use the command below
Step 2. Installing Varnish on CentOS 7

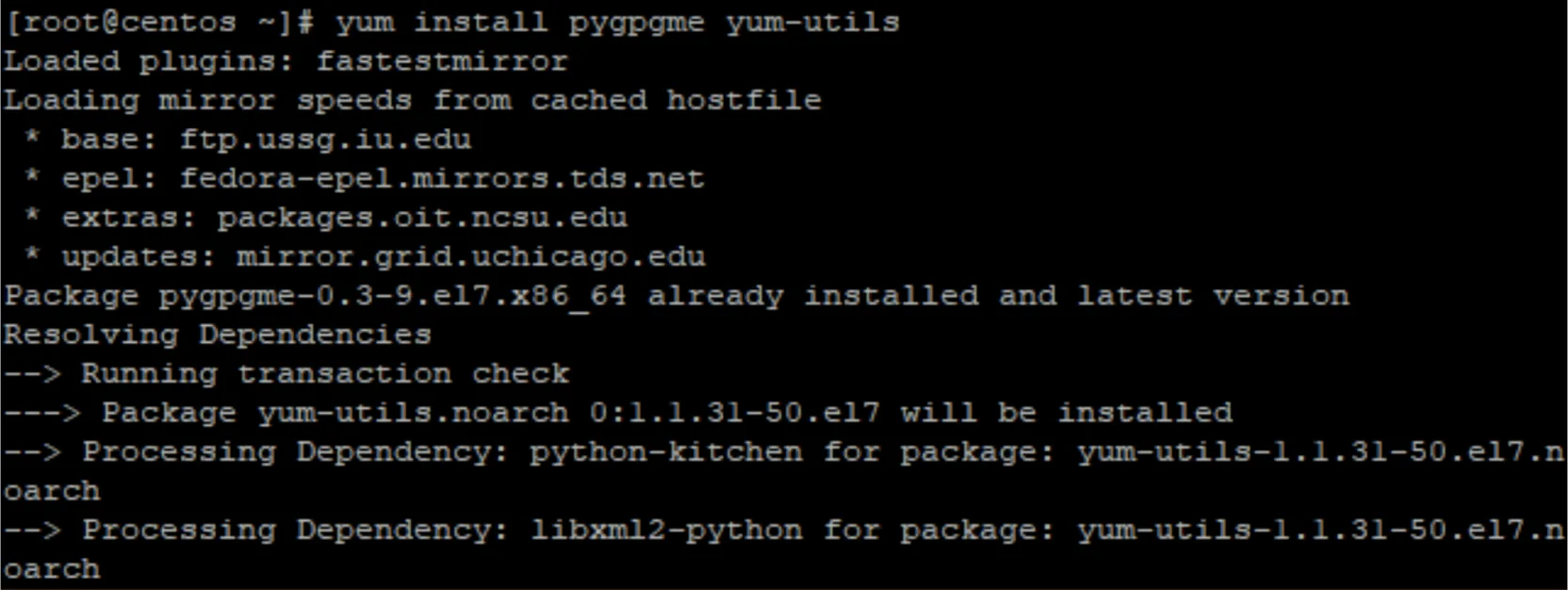

Next, we are going to install pygpgme package which will handle GPG signatures as well as yum-utils which is a collection of handy features. To achieve this, Run the following command
# yum install pygpgme yum-utils
As of writing this article the latest version of Varnish available for CentOS 7 / RHEL 7 is 6.0.3-1and is available from packagecloud.io.
# wget --content-disposition https://packagecloud.io/varnishcache/varnish60lts/packages/el/7/varnish-6.0.3-1.el7.x86_64.rpm/download.rpm # rpm -i varnish-6.0.3-1.el7.x86_64.rpm

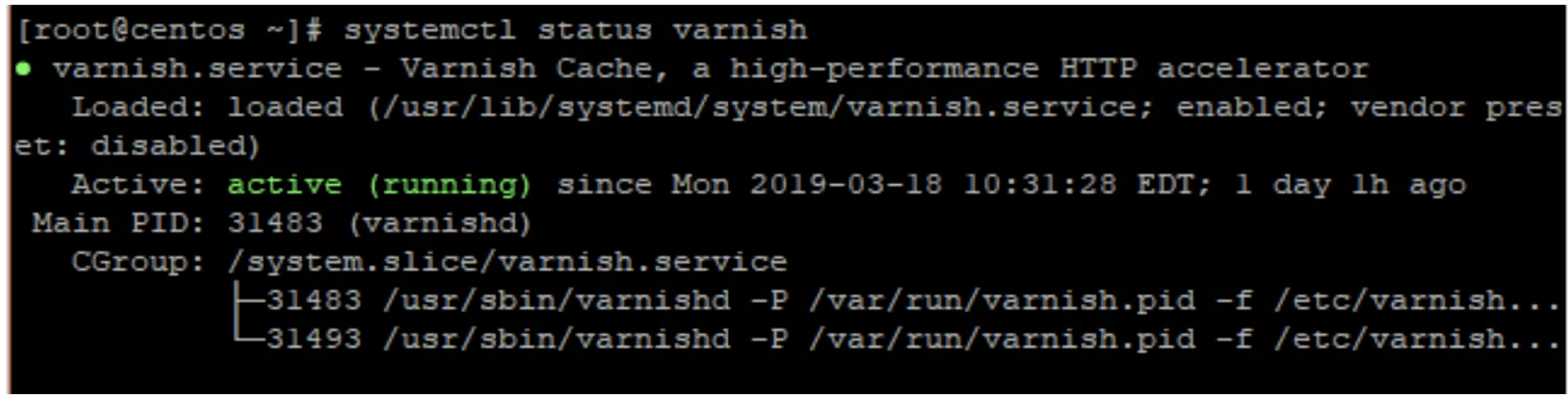

After successful installation, run the following command to verify if varnish is running
# systemctl status varnish
Usually, the executable will be located at /usr/sbin/varnishd path and configuration files will be located at /etc/varnish path.

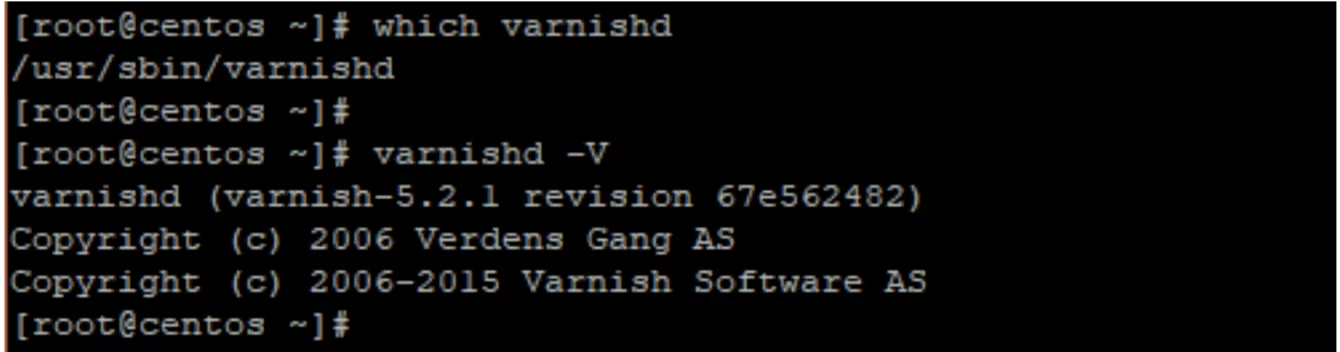

To confirm the path of Varnish executable run
# which varnishd
To check the version of Varnish installed, run
# varnishd -V
Step 3. Configuring Apache web server to work with Varnish HTTP cache
The final step is to configure Apache to work with Varnish. Apache runs on port 80 by default. We need to change this to a different port so that only Varnish runs on port 80. In this example, we will change the default httpd port in CentOS 7 to listen to port 8080.
This can easily be achieved using the ‘sed’ command
# sed -i "s/Listen 80/Listen 8080/" /etc/httpd/conf/httpd.conf

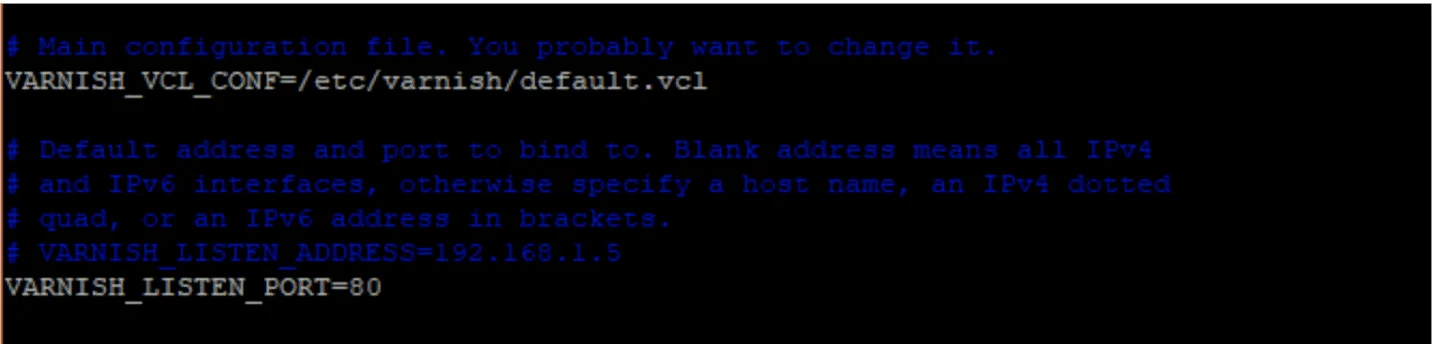

Next, edit the Varnish environment config file and locate the VARNISH_LISTEN_PORT parameter.
# vi /etc/varnish/varnish.params
Change the default value from 6081 to 80
Save and Exit the text editor

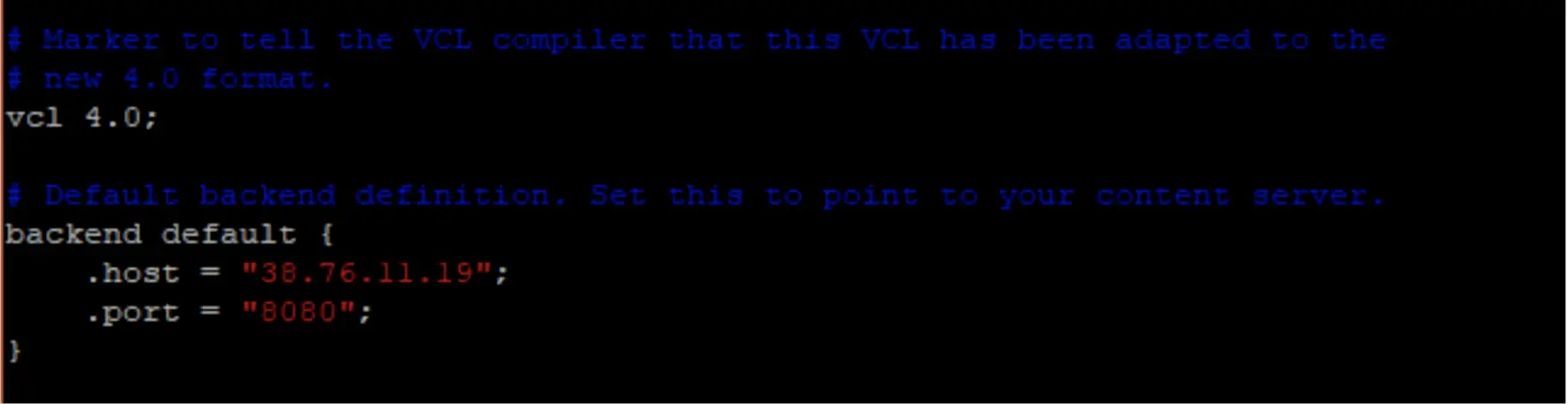

Next, make Apache web server as the default back end server. Open the file below
Navigate to the backend default section as shown and set the .host attribute to point to your server. In my case, the IP address is 22.214.171.124
Finally, restart the Apache web server as well as Varnish Cache for the changes to take effect
# systemctl restart httpd # systemctl restart varnish
Step 4: Testing Varnish Cache

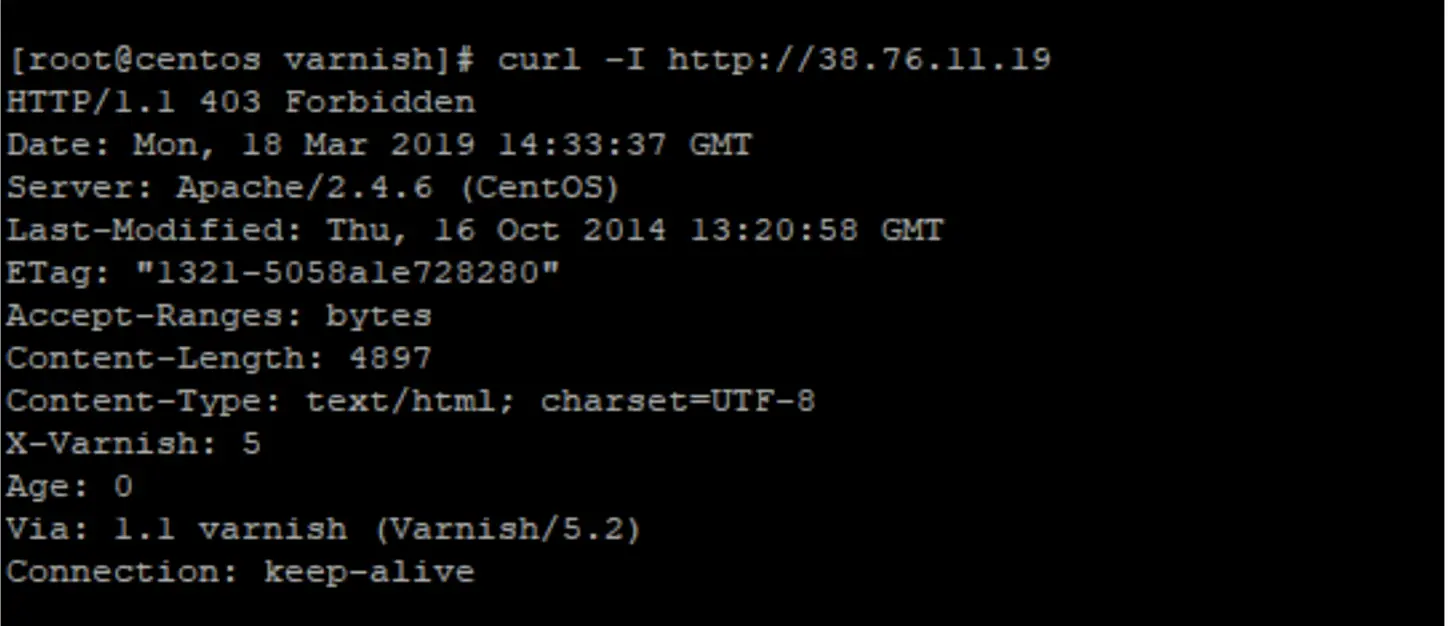

To verify that Varnish is working with Apache Web server use the curl command as shown
# curl -I http://server-ip-address

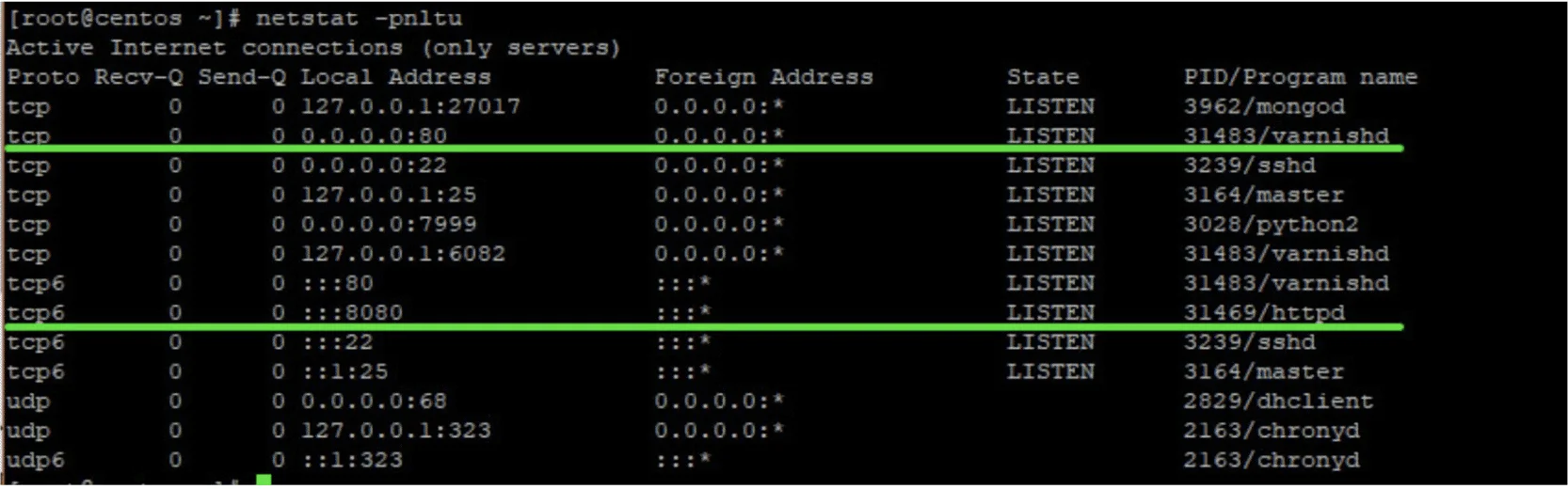

You can also verify that Varnish is running on port 80 and your web server is running on port 8080 using the ‘netstat’ command as shown
After verifying Varnish and Apache Web server is running as expected, Head out to your Cpanel and Click on ‘Tweak Settings’ located on the sidebar
Click on the ‘Settings’ tab and change the default port from port 80 to 8080.
This wraps up our guide on how to install varnish on cPanel. Hope this was helpful to you, if you have any questions please ask them in the comments section below.
